Blower Motor Replacement — Above & Beyond Air Conditioning & Heating
ECM, PSC, and X-13 motor replacement for AC and furnace, OEM-spec capacitor sizing, wheel balance check, stocked on every truck.

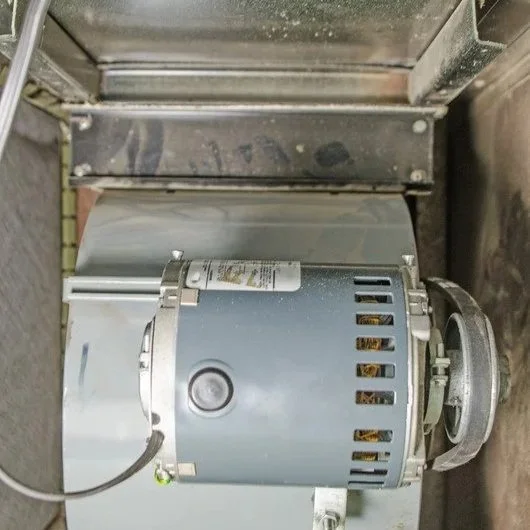

The indoor blower motor pushes cooled or heated air from the air handler through your ductwork and into your home. When it fails, your AC's outdoor unit might still run perfectly but no air comes out of your vents. House temperature climbs (summer) or drops (winter) within minutes. Blower motor failures are responsible for roughly 18% of the no-cool and no-heat calls we field in San Antonio.
Above & Beyond stocks PSC (Permanent Split Capacitor) blower motors in 1/3 HP, 1/2 HP, 3/4 HP, and 1 HP universal sizing, plus ECM (Electronically Commutated Motor) variable-speed modules for premium air handlers. Universal motors fit every major brand. We also carry OEM blower motors and ECM modules for Day & Night, Carrier, American Standard, and Trane warranty work. Free $89 diagnostic credited back with repair. Written estimate first.
Critical detail most chain installers miss: ECM variable-speed motors have a control module separate from the motor itself. When the system is not moving air, the failure could be the module ($385-$685) OR the full motor assembly ($1,200-$1,800). We test the module separately so you do not pay for a full assembly when only the module failed.
Three Ways Blower Motors Fail in San Antonio
Bearing Wear
Attic-Installation Failure
Capacitor or ECM Module Failure
Heat-Stress Failure
Blower Wheel Imbalance
Slow-Build Failure
Failure #1: Bearing Wear (the attic-installation failure)
Indoor blower motors in attic-installed air handlers operate in 130 degree-plus summer ambient. The motor's sealed bearings degrade roughly 40-50% faster in attic ambient vs closet ambient. Symptoms progress predictably: faint hum gets louder over weeks, then grinding or squealing at startup, then motor runs hot to the touch, then total bearing seizure.
Once bearings seize, the motor stops, indoor airflow stops, and the indoor evaporator coil can freeze over within 15-30 minutes because the outdoor unit is still pulling refrigerant through with no airflow to absorb heat. Repair: motor replacement, $385-$785 PSC or $1,200-$1,800 full ECM assembly. About 60-90 minutes on site.
Failure #2: Capacitor or ECM Module Failure (the heat-stress failure)
PSC motors need a run capacitor for normal operation; when the capacitor fails, the motor hums but does not start, which is the same symptom as bearing seizure but a different fix. ECM motors do not use a traditional capacitor. They use an electronics module that converts AC line voltage to DC and modulates motor speed.
ECM modules fail far more often than ECM motors do (roughly a 4:1 ratio). The critical diagnostic: separate the module from the motor and test them independently. Module-only failure: $385-$685 fix. Motor-and-module failure: $1,200-$1,800 fix. Chain installers often quote the full assembly without testing, which saves them time and costs you $1,000 or more.
Failure #3: Pet Hair, Dust, and Blower Wheel Imbalance (the slow-build failure)
Pet hair, dust, and pollen pulled through the return air system accumulates on the squirrel-cage blower wheel. Buildup unbalances the wheel, which causes vibration that destroys bearings, and reduces airflow which makes the motor run hotter.
Symptoms: gradually reduced airflow at vents, vibration sound from the air handler, and motor running hot. Fix: wheel cleaning ($85-$145) or wheel replacement ($185-$285), much cheaper than the motor replacement that buildup-vibration would have caused in another year or two. We see this most often in pet-heavy households.
Fouling Pattern #2: Hard-Water Mineral Deposits (the Hill Country failure)
Sprinkler systems spraying directly on the outdoor condenser deposit mineral-rich water on the aluminum coil fins. As the water evaporates in the SA heat, minerals crystallize on the fins, particularly calcium carbonate and magnesium scale. Over years, this builds up as a hard white deposit that vacuum cleaning cannot remove. Acid-rinse cleaning is required (for copper-fin coils) or specialized non-acid mineral-removal chemistry (for aluminum microchannel coils). Most common in Boerne, Fair Oaks Ranch, Bulverde, Canyon Lake, and Spring Branch. Cost: $245-$400 for mineral-removal cleaning.
Fouling Pattern #3: Pollen and Mold Spore Coating (the SA allergy season failure)
SA's four allergy seasons (cedar December through February, oak March through May, ragweed August through October, mold post-monsoon) coat outdoor condenser coils with pollen and spore residue. The oak season is the worst, with the visible oak fuzz coating that covers cars in March-April also covering outdoor AC units. Pollen reduces airflow through the coil and creates a perfect substrate for mold growth when combined with sprinkler water or rain. Annual cleaning before the start of peak summer cooling prevents the pollen layer from becoming a permanent issue.
Our Blower Motor Diagnostic and Replacement Process
-
A real San Antonio team member answers. We ask whether the outdoor unit is running (rules in and out blower failure), whether airflow is weak vs absent, and the brand and approximate age. That tells us PSC vs ECM and which parts to bring.
-
Text with the tech's name and photo. No mystery dispatch.
-
Roughly 30-40 minutes on site. For PSC motors: test run capacitor first (cheap failure point to rule out), then current draw vs nameplate, bearing feel-test (with power off), and winding resistance test. For ECM motors: read module bus signal at input terminals, verify the control board is sending the right speed call, and test motor with known-good module on the bench if needed. We confirm which part failed before quoting.
-
Verbatim parts and labor. Universal motor vs OEM (when warranty in play). ECM: module-only vs full-assembly options separately quoted.
-
PSC motor replacement: 60-90 minutes typical. Pull air handler door, remove blower assembly, swap motor, properly size and install new run capacitor (always, capacitor must match new motor), reinstall blower assembly, verify static pressure and airflow. ECM module-only replacement: 30-50 minutes typical. Full ECM assembly replacement: 75-105 minutes typical.
-
Verify current draw on new motor, measure static pressure across the coil, confirm airflow at multiple registers, run system for 15-20 minutes to confirm steady operation. 30-day callback warranty on the motor and related parts.
Blower Motor Replacement Pricing in San Antonio
Diagnostic: $89 diagnostic fee. Credited back when you approve the repair. $89 if you decline.
| PSC Blower Motor Replacement (Parts + Labor) | Price Range |
|---|---|
| Capacitor replacement (rule out before motor) | $185 – $285 |
| Universal PSC blower motor, 1/3 HP | $385 – $485 |
| Universal PSC blower motor, 1/2 HP | $445 – $585 |
| Universal PSC blower motor, 3/4 HP | $545 – $685 |
| Universal PSC blower motor, 1 HP | $645 – $785 |
| OEM brand-specific PSC motor | Add $150–$300 to universal pricing |
| ECM (Variable-Speed) Replacement (Parts + Labor) | Price Range |
|---|---|
| ECM module-only replacement (when only module failed) | $385 – $685 |
| Full ECM blower assembly (motor + module + wiring) | $1,200 – $1,800 |
| ECM diagnostic with communicating-system tools | Included in $89 diagnostic |
| OEM ECM assembly (Carrier Infinity, Day & Night Premier Elite) | $1,400 – $2,100 |
| Wheel and Hardware (Parts + Labor) | Price Range |
|---|---|
| Blower wheel cleaning (in-place, light buildup) | $85 – $145 |
| Blower wheel removal and deep clean | $185 – $285 |
| Blower wheel replacement (squirrel cage) | $185 – $285 |
| Motor mount replacement | $125 – $185 |
| Vibration isolation pad replacement | $65 – $95 |
5.0 Rated — Hundreds of Verified Reviews
Real customers. Real names. Real service calls. Live Google reviews help customers see the trust before they book.
Above & Beyond Blower Motor Service vs. National HVAC Chains
| Feature | Above & Beyond | National HVAC Chains |
|---|---|---|
| Diagnostic Approach | PSC capacitor first, ECM module separately tested from motor | Often full assembly quoted without separate testing |
| ECM Module-Only Option | Quoted when only the module failed, saves $1,000 or more | Often only full assembly replacement quoted |
| Motor Inventory | Universal PSC 1/3 HP to 1 HP, ECM modules, and OEM kits all stocked | Often requires next-day order |
| Capacitor Sizing After Replacement | Always install new capacitor sized to new motor | Sometimes reused, leads to early motor failure |
| Universal vs OEM Choice | Both available, recommended based on warranty | Often only OEM offered (higher margin) |
| Diagnostic Pricing | $89 credited back when you approve the repair | $89 to $149 charged upfront, often not refundable |
| Estimate Format | Written estimate with verbatim parts and labor | Verbal estimates, change orders common |
| Wheel Cleaning Capability | In-place and deep-clean options offered before motor replacement quote | Often skipped, straight to motor replacement |
| Technician Compensation | Hourly and completion pay, no commission pressure | Commission-driven, techs paid percentage of what you spend |
| Warranty on Repair | 30-day callback warranty included | Often 7 to 14 days, sometimes nothing |
Frequently Asked Questions
How much does a blower motor replacement cost in San Antonio?
PSC blower motors run $385-$785 parts and labor for universals (1/3 HP through 1 HP), or add $150-$300 for OEM. ECM module-only replacement runs $385-$685. Full ECM blower assembly runs $1,200-$1,800 for universals, $1,400-$2,100 for OEM. The $89 diagnostic is credited back when you approve the repair.
Why is my AC running but no air comes out of the vents?
Most common cause: blower motor failed (bearings seized, capacitor failed, or ECM module failed). The outdoor compressor can run independently of the indoor blower, so AC running but no airflow is a classic blower failure symptom. We diagnose which specific part failed, motor vs module vs capacitor, before quoting.
Why did the other shop quote me $1,800 for an ECM blower when you said only the module failed?
ECM modules and motors fail independently in roughly a 4:1 ratio (modules fail four times more often than motors). When only the module failed, replacing just the module runs $385-$685 vs $1,200-$1,800 for the full assembly. Many chain installers do not carry modules separately or do not bother testing the module independently and quote the full assembly instead. We test the module separately so you do not overpay.
Why does the technician want to replace the run capacitor too?
Run capacitors are sized specifically to the motor they are paired with. When we install a new motor, the original capacitor is almost always the wrong microfarad value for the new motor. Reusing the wrong capacitor weakens motor startup, runs the motor hotter, and shortens motor life by 30-50%. We always install a new, properly-sized capacitor with every PSC motor replacement.
